Features: large flow capacity, small pressure loss, resistance to water impact and pollution; Removable structure for easy repair and maintenance; Indicating mechanism adopts magnetic transmission structure, the reading is clear and intuitive (the counter part also has liquid seal type for users to choose).
Conditions of use:
Water temperature: 0℃ ~ 40℃ (cold water meter) 0℃ ~ 90℃ (hot water meter)
Water pressure: ≤1MPa (1.6mpa when special requirements)
Maximum allowable error:
(a) From the low zone including minimum flow (Qmin) to the low zone excluding boundary flow (QT) : ±5%
(b) From high zone including boundary flow (QT) to high zone including overload flow (QS) : ±2% (hot water meter ±3%)
Main technical parameters
Model | Nominal diameter (mm) | Qmax | Qn | Qt | Qmin qmin | Minimum readout | Maximum readout |
m3/h | m3 | ||||||
LXXG(R)-50 | 50 | 30 | 15 | 4.5 | 1.2 | 0.0002 | 999,999 |
LXXG(R)-65 | 65 | 50 | 25 | 7.5 | 2 | 0.002 | 9,999,999 |
LXXG(R)-80 | 80 | 80 | 40 | 12 | 3.2 | 0.002 | 9,999,999 |
LXXG(R)-100 | 100 | 120 | 60 | 18 | 4.8 | 0.002 | 9,999,999 |
LXXG(R)-125 | 125 | 200 | 100 | 30 | 8 | 0.002 | 9,999,999 |
LXXG(R)-150 | 150 | 300 | 150 | 45 | 12 | 0.002 | 9,999,999 |
LXXG(R)-200 | 200 | 500 | 250 | 75 | 20 | 0.002 | 9,999,999 |

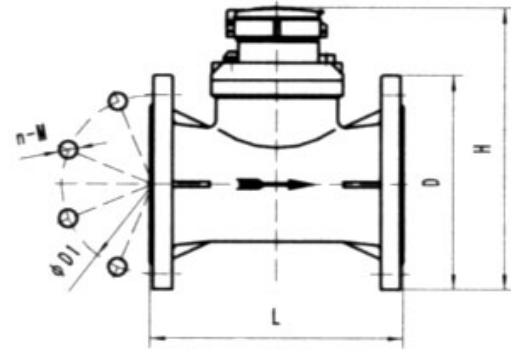

Boundary dimension:
Model | Nominal diameter (mm) | L | H | connecting flange | ||
mm | flange outer diameter D | Diameter of bolt hole center circle D1 | connecting bolt | |||
LXXG(R)-50 | 50 | 200 | 248 | 165 | 125 | 4-M16 |
LXXG(R)-65 | 65 | 200 | 260 | 185 | 145 | 4-M16 |
LXXG(R)-80 | 80 | 225 | 276 | 200 | 160 | 8-M16 |
LXXG(R)-100 | 100 | 250 | 287 | 220 | 180 | 8-M16 |
LXXG(R)-125 | 125 | 250 | 302 | 250 | 210 | 8-M16 |
LXXG(R)-150 | 150 | 300 | 331 | 285 | 240 | 8-M20 |
LXXG(R)-200 | 200 | 350 | 374 | 340 | 295 | 8-M20 |
